Test Status (Passed, Probable Pass, Probable Fail, Failed)

Modified on Wed, 3 Mar, 2021 at 9:38 AM

ProCal offers multiple test status' to indicate the state of each test. When performing calibrations using individual uncertainties there are four test status' available.


Only Test Passed and Test Failed are displayed when no uncertainty calculation is performed.


A description of each test status, as well as a screenshot of each state, can be found below :


1) Test Passed : In this state, the entered/measured value falls within the test tolerance, and any uncertainty does not extend outside of the test tolerance. The test status bar is GREEN in this state.

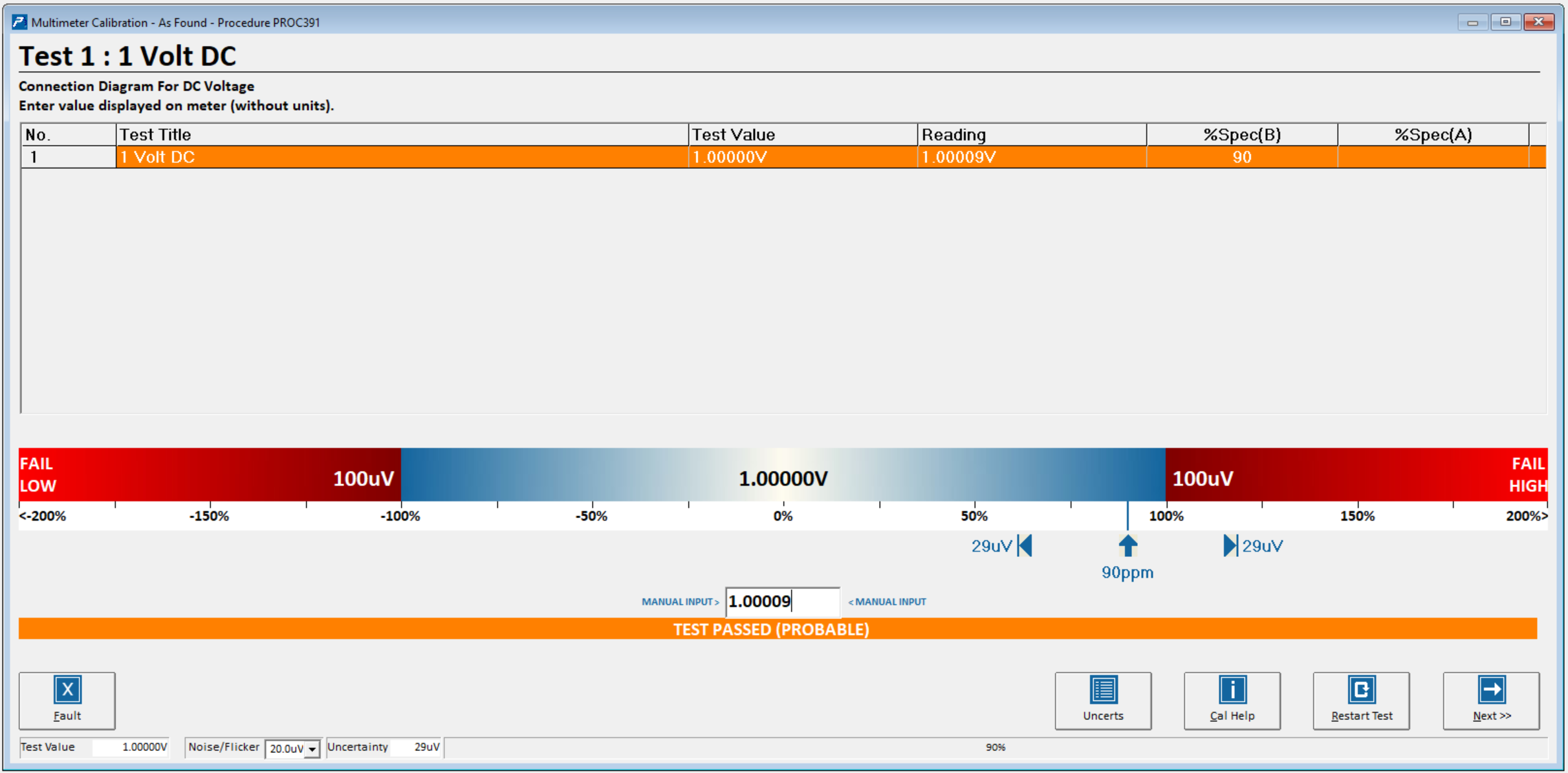

2) Test Passed (Probable) : In this state, the entered/measured value falls within the test tolerance, however, the uncertainty indicates that there is a possibility that the measurement may be outside of tolerance. The test status bar is ORANGE in this state.


3) Test Failed (Probable) : In this state, the entered/measured value falls outside of the test tolerance, however, the uncertainty indicates that there is a possibility that the measurement may be within tolerance. The test status bar is ORANGE in this state.



4) Test Failed : In this state, the entered/measured value falls outside of the test tolerance, and any uncertainty also falls outside of the test tolerance.
