ProCal : Connecting to Instruments using a Static FTDI address

Modified on Mon, 04 Mar 2019 at 09:06 AM

To support legacy instruments which do not report serial number information over the interface,

ProCal provides the ability to set a 'static' FTDI address.


How to configure a static FTDI address :


1. Determine the FTDI address of the instrument by connecting the instrument using an FTDI Usb to RS232 converter lead as

described in this solution :


ProCal : Connecting to instruments fitted with RS232 interfaces


2. Determine the UNIQUE FTDI ADDRESS - this is displayed on startup of ProCal and can also be re-displayed by selecting :



The FTDI address is displayed in SQUARE BRACKETS - see the EXAMPLE below :

Note : Your device ID will be a UNIQUE number displayed by your specific computer :




Note : The FTDI address is unique to a specific lead (or instrument if the USB interface is built-in) -

the square brackets are NOT part of the address and should be omitted, eg. :


DA01FYCE

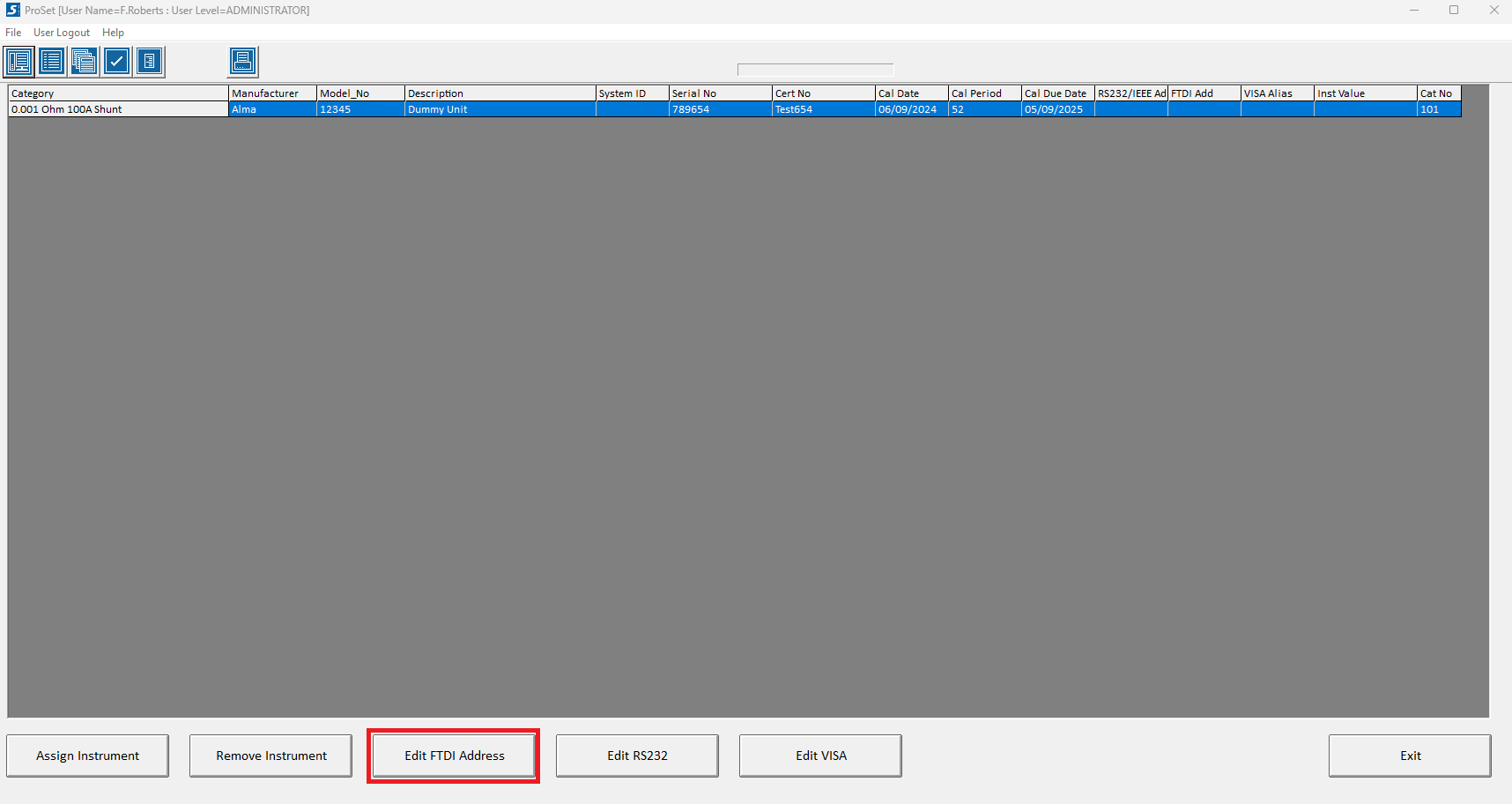

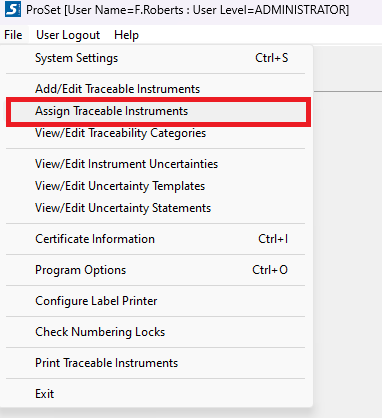

3. Use ProSet to enter the static FTDI address for the required instrument :



ProCal will now use the specified FTDI static address to communicate with the instrument as configured in ProSet.
